图威 TV-SP-15EQ 方型高保真微音拾音器(901LS) 【报价图片参数价格】- 图威安防

查看大图

分享到

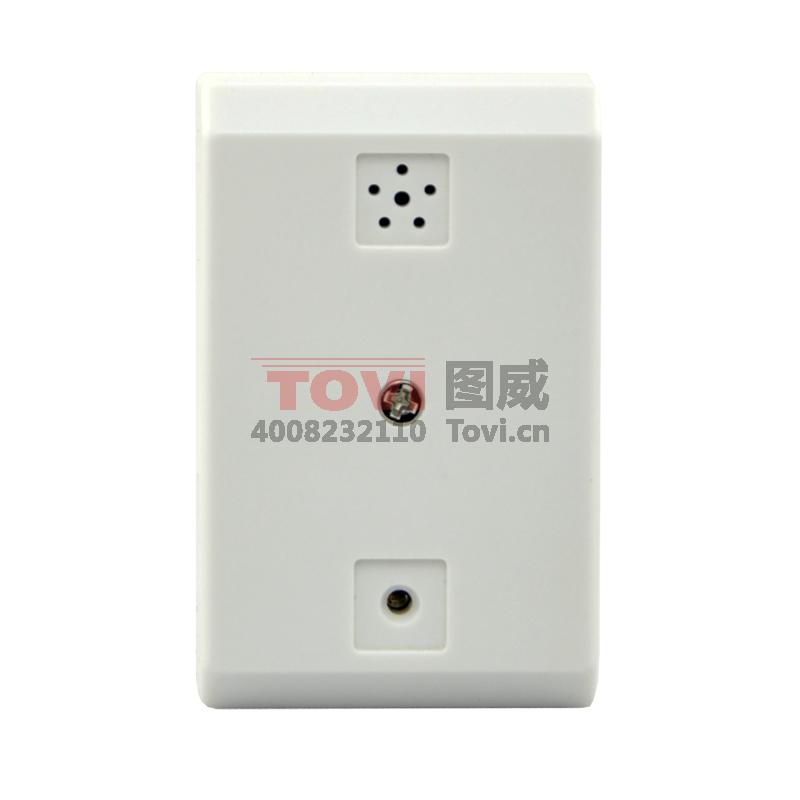

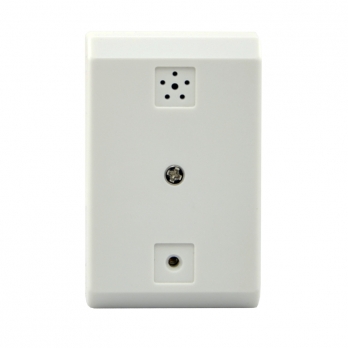

图威 TV-SP-15EQ 方型高保真微音拾音器(901LS)

销售价：
商品评分： (共0人评论)

货品编号：

P531D1C24A8C49

品牌：

图威

数量： -+ 个
此商品已下架，看看其他商品吧收藏

商品详情

品牌：图威
所属分类：拾音器

<a title="产品展示" class="maxMapPoint"></a>
<table width="790" align="center" background="http://www.tovi.cn/public/images/1d/61/d2/7e298f0a88707850b9b599e64f23e39b.jpg?1387353571#w" border="0" cellpadding="11"> <tbody><tr><td height="39" valign="middle"><font color="#f3f3f3" face="黑体" size="5">1  产品展示</font><span style="text-align: center;"> </span></td></tr></tbody></table>

<div style="text-align: center;">
<img alt="图威 TV-901LS 方型高保真微音拾音器产品展示" src="http://www.tovi.cn/public/images/d8/b4/32/c56a6c8436ea7250f6ca9135f2a8e508.jpg?1394416620#h"></div>
<p> </p>

<a title="产品参数" class="maxMapPoint"></a>
<table width="790" align="center" background="http://www.tovi.cn/public/images/1d/61/d2/7e298f0a88707850b9b599e64f23e39b.jpg?1387353571#w" border="0" cellpadding="11"> <tbody><tr><td height="39" valign="middle"><font color="#f3f3f3" face="黑体" size="5">2  产品参数</font><span style="text-align: center;"> </span></td></tr></tbody></table><p><table align="center" style="width: 790px; color: rgb(102, 102, 102); line-height: 18px; font-family: Arial, Verdana, 宋体b8b体; font-size: 14px; border-collapse: collapse; border-spacing: 0px; background-color: rgb(255, 255, 255);">
<tbody>
  <tr>
    <th style="border: 1px solid rgb(221, 221, 221); border-image: none; height: 32px; padding-left: 8px; font-size: 14px; background-color: rgb(239, 239, 239);" colspan="2">TV-901LS 方型拾音器（微音监听器）</th>
  </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">信号引线</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">≤1000米</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">工作温度</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">-20℃～+40℃</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">电源电压</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">DC 12V</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">静态电流</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">3.5mA</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">最大不失真输出信号电压</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">7.8Vp-p</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">监听范围</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">监听场合100平方米内不会失真</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">灵敏度</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">多级灵敏度可调电阻</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">特性</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">带高保真、低噪声处理芯片</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">机身尺寸</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">长70×宽50×高22(mm)</td>
    </tr>
    <tr>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; width: 137px; text-align: right; line-height: 2; font-weight: 700; white-space: nowrap;">重 量</td>
      <td style="padding: 0px 10px; border: 1px solid rgb(221, 221, 221); border-image: none; line-height: 2;">0.08Kg</td>
    </tr>
</tbody>
</table></p>
<p> </p>

<a title="应用场景" class="maxMapPoint"></a>
<table width="790" align="center" background="http://www.tovi.cn/public/images/1d/61/d2/7e298f0a88707850b9b599e64f23e39b.jpg?1387353571#w" border="0" cellpadding="11"> <tbody><tr><td height="39" valign="middle"><font color="#f3f3f3" face="黑体" size="5">3  应用场景</font><span style="text-align: center;"> </span></td></tr></tbody></table>
<div style="text-align: center;">
<img src="http://www.tovi.cn/public/images/2b/ca/f9/c2add684d9cd4b908cd23794e02f3cf3.jpg?1387190365#w"> </div>
<p> </p>

<a title="购物说明" class="maxMapPoint"></a>
<table width="790" align="center" background="http://www.tovi.cn/public/images/1d/61/d2/7e298f0a88707850b9b599e64f23e39b.jpg?1387353571#w" border="0" cellpadding="11"> <tbody><tr><td height="39" valign="middle"><font color="#f3f3f3" face="黑体" size="5">4  购物说明</font><span style="text-align: center;"> </span></td></tr></tbody></table>
<div style="text-align: center;">
<img src="http://www.tovi.cn/public/images/2b/1f/8e/7d8054cf18873a92e41d126ec1dca65c.jpg?1387191449#h"> </div>
<p> </p>
